Coudes DIN 11852-BS

DN
DIN

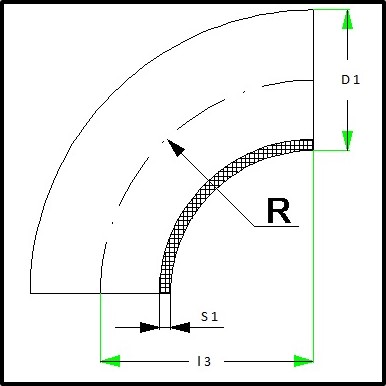

DimensionR/l3Coude 90°
No. d'article 1.4307/1.4404

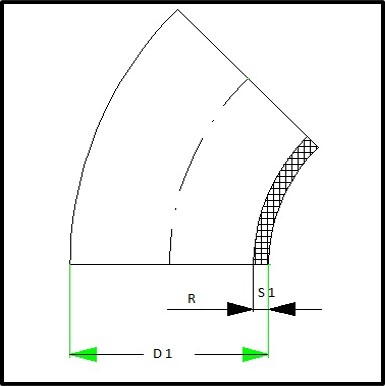

Coude 45°
No. d'article 1.4307/1.4404
D1S1
10131.52620001.000.013.10/3020013.000.013.10/30
15191.53520001.000.019.10/3020013.000.019.10/30
20231.54020001.000.023.10/3020013.000.023.10/30
25291.55020001.000.029.10/30

20013.000.029.10/30

32351.55520001.000.035.10/3020013.000.035.10/30
40411.56020001.000.041.10/3020013.000.041.10/30
50531.57020001.000.053.10/3020013.000.053.10/30
65702.08020002.000.065.10/3020013.000.065.10/30
80852.09020002.000.080.10/3020013.000.080.10/30
1001042.010020002.000.100.10/3020013.000.100.10/30
1251292.0187.520002.000.125.10/3020013.000.125.10/30
1501542.022520002.000.150.10/3020013.000.150.10/30
2002042.030020002.000.200.10/3020013.000.200.10/30

Coudes forme BL sur demande.

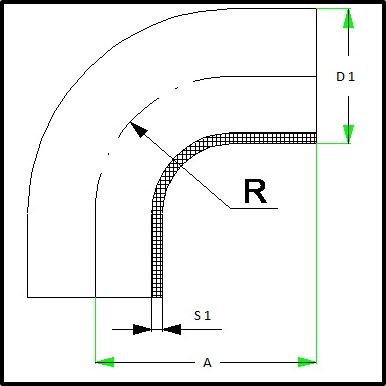

Coudes 90° SMS - Pouce

DN Dimension R A No. d'article 1.4307/1.4404 Dimension R A No. d'article 1.4307/1.4404
SMS Pouce D1 S1 D1 S1
25 1" 25 1.2

25

55 20103.000.100.30 25 1.2 37.5 65 20102.000.100.10/30
38 1 1/2" 38 1.2

38

70 20103.000.112.30 38 1.2 57 85 20102.000.112.10/30
51 2" 51 1.2 51 82 20103.000.200.10/30 51 1.2 76.5 110 20102.000.200.10/30
63.5 2 1/2" 63.5 1.6 63.5 105 20103.000.212.10/30 63.5 1.6 95.3 135 20102.000.212.10/30
76 3" 76 2.0 76 110 20103.000.300.10/30 76 1.6 114 155 20102.000.300.10/30
101.6 4" 101.6 2.0 153 195 20103.000.400.10/30 - - - - -

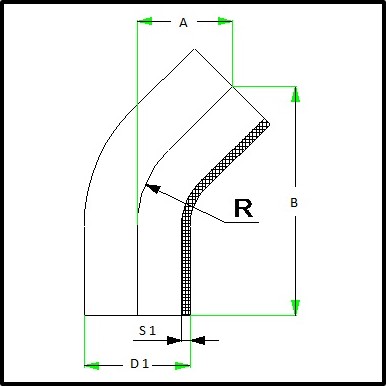

Coudes 45° SMS - Pouce

DNDimensionRABNo. d'article 1.4404DimensionRABNo. d'article 1.4404
SMSPouceD1S1D1S1
251"251.225327720108.000.100.10251.237.521.451.520107.000.100.10
381 1/2"381.238409720108.000.112.10381.25729.270.520107.000.112.10
512"511.2514510820108.000.200.10511.276.541.510020107.000.200.10
63.52 1/2"63.51.663.55713820108.000.212.1063.51.695.353.813020107.000.212.10
763"762.0765814020108.000.300.10761.611463.815420107.000.300.10
101.64"101.62.015386.420920108.000.400.10------

Fabrication standard en 1.4404. Matière 1.4307 sur demande.
