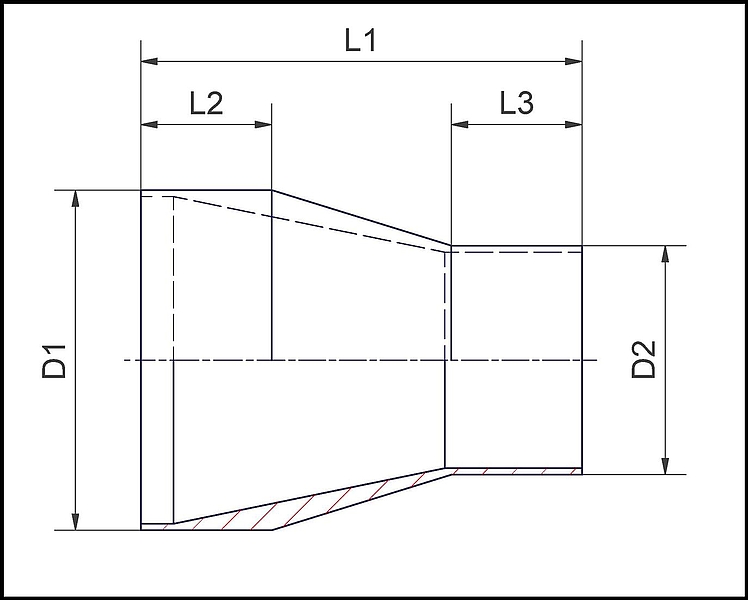

Reduzierung konz. Form RK
Reduzierung konz. Form RK

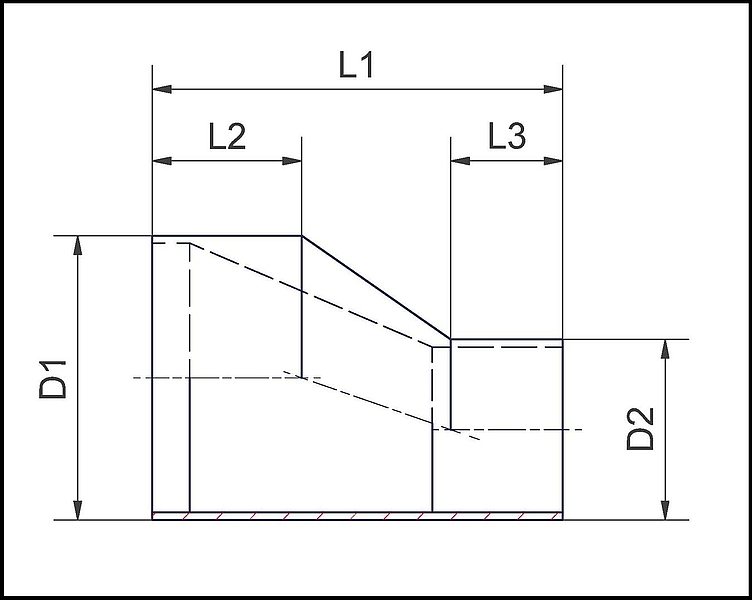

Reduzierung exz. Form RE
Reduzierung exz. Form RE

Reduzierungen DIN 11865 - 1.4435 BN2 - Reihe A

NW
DIN		Reihe A - DIN 11866konzentrisch "RK"exzentrisch "RE"
D1D2L1L2L3Art.-Nr. H3oArt.-Nr. HE3oArt.-Nr. H3oArt.-Nr. HE3o
8/610x18x138191920201.008.006.3080201.008.006.3020202.008.006.3080202.008.006.30
10/613x1.58x138191920201.010.006.3080201.010.006.3020202.010.006.3080202.010.006.30
10/813x1.510x138191920201.010.008.3080201.010.008.3020202.010.008.3080202.010.008.30
15/819x1.510x160252520201.015.008.3080201.015.008.3020202.015.008.3080202.015.008.30
15/1019x1.513x1.560252520201.015.010.3080201.015.010.3020202.015.010.3080202.015.010.30
20/1023x1.513x1.560252520201.020.010.3080201.020.010.3020202.020.010.3080202.020.010.30
20/1523x1.519x1.560252520201.020.015.3080201.020.015.3020202.020.015.3080202.020.015.30
25/1529x1.519x1.570252520201.025.015.3080201.025.015.3020202.025.015.3080202.025.015.30
25/2029x1.523x1.570252520201.025.020.3080201.025.020.3020202.025.020.3080202.025.020.30
32/2035x1.523x1.580302520201.032.020.3080201.032.020.3020202.032.020.3080202.032.020.30
32/2535x1.529x1.580302520201.032.025.3080201.032.025.3020202.032.025.3080202.032.025.30
40/2041x1.523x1.590302520201.040.020.3080201.040.020.3020202.040.020.3080202.040.020.30
40/2541x1.529x1.590302520201.040.025.3080201.040.025.3020202.040.025.3080202.040.025.30
40/3241x1.535x1.590303020201.040.032.3080201.040.032.3020202.040.032.3080202.040.032.30
50/2553x1.529x1.590302520201.050.025.3080201.050.025.3020202.050.025.3080202.050.025.30
50/3253x1.535x1.590303020201.050.032.3080201.050.032.3020202.050.032.3080202.050.032.30
50/4053x1.541x1.590303020201.050.040.3080201.050.040.3020202.050.040.3080202.050.040.30
65/4070x2.041x1.5110403020201.065.040.3080201.065.040.3020202.065.040.3080202.065.040.30
65/5070x2.053x1.5110403020201.065.050.3080201.065.050.3020202.065.050.3080202.065.050.30
80/5085x2.053x1.5110403020201.080.050.3080201.080.050.3020202.080.050.3080202.080.050.30
80/6585x2.070x2.0110404020201.080.065.3080201.080.065.3020202.080.065.3080202.080.065.30
100/65104x2.070x2.0135404020201.100.065.3080201.100.065.3020202.100.065.3080202.100.065.30
100/80104x2.085x2.0135404020201.100.080.30

80201.100.080.30

20202.100.080.3080202.100.065.30
125/80129x2.085x2.0150554020201.125.080.3080201.125.080.3020202.125.080.3080202.125.080.30
125/100129x2.0104x2.0150554020201.125.100.3080201.125.100.3020202.125.100.3080202.125.100.30
150/100154x2.0104x2.0170554020201.150.100.3080201.150.100.3020202.150.100.3080202.150.100.30
150/125154x2.0129x2.0170555520201.150.125.3080201.150.125.3020202.150.125.3080202.150.125.30
200/125204x2.0129x2.02305555auf Anfrageauf Anfrageauf Anfrageauf Anfrage
200/150204x2.0154x2.02305555auf Anfrageauf Anfrageauf Anfrageauf Anfrage

Reduzierungen DIN 11865 - 1.4435 BN2 - Reihe B

NW
ISO		Reihe B - DIN 11866konzentrisch "RK"exzentrisch "RE"
D1D2L1L2L3Art.-Nr. H3oArt.-Nr. HE3oArt.-Nr. H3oArt.-Nr. HE3o
8/613.5x1.610.2x1.655252520301.135.102.3080301.135.102.3020401.135.102.3080401.135.102.30
10/617.2x1.610.2x1.660252520301.172.102.3080301.172.102.3020401.172.102.3080401.172.102.30
10/817.2x1.613.5x1.660252520301.172.135.3080301.172.135.3020401.172.135.3080401.172.135.30
15/821.3x1.613.5x1.660252520301.213.135.3080301.213.135.3020401.213.135.3080401.213.135.30
15/1021.3x1.617.2x1.660252520301.213.172.3080301.213.172.3020401.213.172.3080401.213.172.30
20/826.9x1.613.5x1.660252520301.269.135.3080301.269.135.3020401.269.135.3080401.269.135.30
20/1026.9x1.617.2x1.660252520301.269.172.3080301.269.172.3020401.269.172.3080401.269.172.30
20/1526.9x1.621.3x1.660252520301.269.213.3080301.269.213.3020401.269.213.3080401.269.213.30
25/1533.7x2.021.3x1.670302520301.337.213.3080301.337.213.3020401.337.213.3080401.337.213.30
25/2033.7x2.026.9x1.670302520301.337.269.3080301.337.269.3020401.337.269.3080401.337.269.30
32/1542.4x2.021.3x1.680302520301.424.213.3080301.424.213.3020401.424.213.3080401.424.213.30
32/2042.4x2.026.9x1.680302520301.424.269.3080301.424.269.3020401.424.269.3080401.424.269.30
32/2542.4x2.033.7x2.080303020301.424.337.3080301.424.337.3020401.424.337.3080401.424.337.30
40/1548.3x2.021.3x1.690302520301.483.213.3080301.483.213.3020401.483.213.3080401.483.213.30
40/2048.3x2.026.9x1.690302520301.483.269.3080301.483.269.3020401.483.269.3080401.483.269.30
40/2548.3x2.033.7x2.090303020301.483.337.3080301.483.337.3020401.483.337.3080401.483.337.30
40/3248.3x2.042.4x2.090303020301.483.424.3080301.483.424.3020401.483.424.3080401.483.424.30
50/1560.3x2.021.3x1.6100302520301.603.213.3020401.603.213.3020401.603.213.3080401.603.213.30
50/2060.3x2.026.9x1.6100302520301.603.269.3080301.603.269.3020401.603.269.3080401.603.269.30
50/2560.3x2.033.7x2.0100303020301.603.337.3080301.603.337.3020401.603.337.3080401.603.337.30
50/3260.3x2.042.4x2.0100303020301.603.424.3080301.603.424.3020401.603.424.3080401.603.424.30
50/4060.3x2.048.3x2.0100303020301.603.483.3080301.603.483.3020401.603.483.3080401.603.483.30
60/2576.1x2.033.7x2.0110403020301.761.337.3080301.761.337.3020401.761.337.3080401.761.337.30
60/3276.1x2.042.4x2.0110403020301.761.424.3080301.761.424.3020301.761.424.3080401.761.424.30
65/4076.1x2.048.3x2.0110403020301.761.483.3080301.761.483.3020401.761.483.3080401.761.483.30
65/5076.1x2.060.3x2.0110403020301.761.603.3080301.761.603.3020401.761.603.3080401.761.603.30
80/4088.9x2.348.3x2.0110403020301.889.483.3080301.889.483.3020401.889.483.3080401.889.483.30
80/5088.9x2.360.3x2.0110403020301.889.603.3080301.889.603.3020401.889.603.3080401.889.603.30
80/6588.9x2.376.1x2.0110404020301.889.761.3080301.889.761.3020401.889.761.3080401.889.761.30
100/50114.3x2.360.3x2.0135403020301.114.603.3080301.114.603.3020401.114.603.3080401.114.603.30
100/65114.3x2.376.1x2.0135404020301.114.761.3080301.114.761.3020401.114.761.3080401.114.761.30
100/80114.3x2.388.9x2.3135404020301.114.889.3080301.114.889.3020401.114.889.3080401.114.889.30
125/80139.7x2.688.9x2.31505540auf Anfrageauf Anfrageauf Anfrageauf Anfrage
125/100139.7x2.6114.3x2.31505540auf Anfrageauf Anfrageauf Anfrageauf Anfrage
150/100168.3x2.6114.3x2.3170555520301.168.114.3080301.168.114.3020401.168.114.3080401.168.114.30
150/125168.3x2.6139.7x2.61705555auf Anfrageauf Anfrageauf Anfrageauf Anfrage
200/125219.1x2.6139.7.x2.62305555auf Anfrageauf Anfrageauf Anfrageauf Anfrage
200/150219.1x2.6168.3x2.62305555auf Anfrageauf Anfrageauf Anfrageauf Anfrage
Werkstoff 1.4539 ab Werkslager verfügbar.

Reduzierungen DIN 11865 - 316L - Reihe C

NW
ASME-BPE		Reihe C - DIN 11866konzentrisch "RK"exzentrisch "RE"
D1D2L1L2L3Art.-Nr. SF1Art.-Nr. SF4Art.-Nr. SF1Art.-Nr. SF4
3/8" / 1/4"9.53x0.896.35x0.8941.2819.0519.05ab Werkslagerab Werkslagerab Werkslagerab Werkslager
1/2" / 1/4"12.7x1.656.35x0.8947.6325.419.05ab Werkslagerab Werkslagerab Werkslagerab Werkslager
1/2" / 3/8"12.7x1.659.53x0.8947.6325.419.05ab Werkslagerab Werkslagerab Werkslagerab Werkslager
3/4" / 3/8"19.05x1.659.53x0.8950.825.419.05ab Werkslagerab Werkslagerab Werkslagerab Werkslager
3/4" / 1/2"19.05x1.6512.7x1.6553.9825.425.420712.034.012.3080712.034.012.3020714.034.012.3080714.034.012.30
1" / 1/2"25.4x1.6512.7x1.6563.525.425.420712.100.012.3080712.100.012.3020714.100.012.3080714.100.012.30
1" / 3/4"25.4x1.6519.05x1.6553.9825.425.420712.100.034.3080712.100.034.30

20714.100.034.30

80714.100.034.30
1 1/2" / 3/4"38.1x1.6519.05x1.6576.225.425.420712.112.034.3080712.112.034.3020714.112.034.3080714.112.034.30
1 1/2" / 1"38.1x1.6525.4x1.6563.525.425.420712.112.100.3080712.112.100.3020714.112.100.3080714.112.100.30
2" / 1"50.8x1.6525.4x1.6585.7325.425.420712.200.100.3080712.200.100.3020714.200.100.3080714.200.100.30
2" / 1 1/2"50.8x1.6538.1x1.6563.525.425.420712.200.112.3080712.200.112.3020714.200.112.3080714.200.112.30
2 1/2" / 1 1/2"63.5x1.6538.1x1.6585.7325.425.420712.212.112.3080712.212.112.3020714.212.112.3080714.212.112.30
2 1/2" / 2"63.5x1.6550.8x1.6563.525.425.420712.212.200.3080712.212.200.3020714.212.200.3080714.212.200.30
3" / 1 1/2"76.2x1.6538.1x1.65107.9538.125.420712.300.112.3080712.300.112.3020714.300.112.3080714.300.112.30
3" / 2"76.2x1.6550.8x1.6585.7338.125.420712.300.200.3080712.300.200.3020714.300.200.3080714.300.200.30
3" / 2 1/2"76.2x1.6563.5x1.6566.6838.125.420712.300.212.3080712.300.212.3020714.300.212.3080714.300.212.30
4" / 2"101.6x2.1150.8x1.65130.1838.125.420712.400.200.3080712.400.200.3020714.400.200.3080714.400.200.30
4" / 2 1/2"101.6x2.1163.5x1.65107.9538.125.420712.400.212.3080712.400.212.3020714.400.212.3080714.400.212.30
4" / 3"101.6x2.1176.2x1.6598.4338.138.120712.400.300.3080712.400.300.3020714.400.300.3080714.400.300.30
6" / 3"152.4x2.7776.2x1.65184.1550.838.1ab Werkslagerab Werkslagerab Werkslagerab Werkslager
6" / 4"152.4x2.77101.6x2.11142.8850.838.1ab Werkslagerab Werkslagerab Werkslagerab Werkslager
Werkstoff 1.4435 auf Anfrage.
Werkstoffe 1.4539 und Hastelloy C-22 (2.4602) ab Werkslager verfügbar.
Sondersprünge auf Anfrage.
