T-Stücke DIN 11852

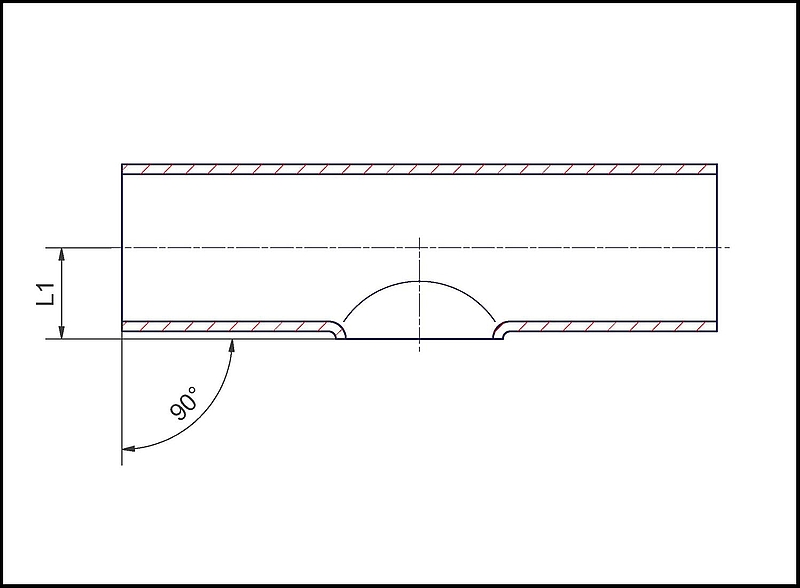

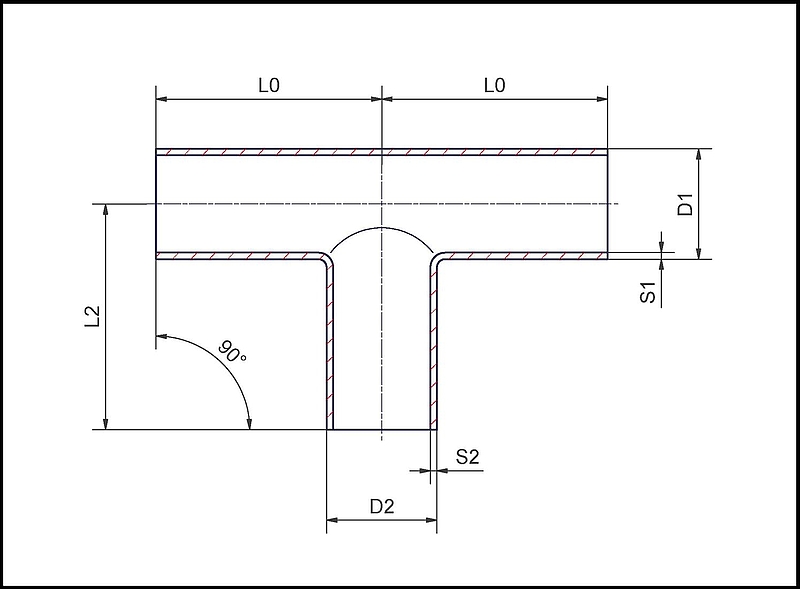

NW DIN	Rohrmasse				L0	L1	L2	Art.-Nr. 1.4307	Art.-Nr. 1.4404
	D1	S1	D2	S2
10	13	1.5	13	1.5	26	-	26	20046.000.013.10	20046.000.013.30
15/10	19	1.5	13	1.5	35	10.5	-	20048.019.013.10	20048.019.013.30
15	19	1.5	19	1.5	35	-	35	20046.000.019.10	20046.000.019.30
20/10	23	1.5	13	1.5	40	12.5	-	20048.023.013.10	20048.023.013.30
20/15	23	1.5	19	1.5	40	13	-	20048.023.019.10	20048.023.019.30
20	23	1.5	23	1.5	40	-	40	20046.000.023.10	20046.000.023.30
25/15	29	1.5	19	1.5	50	16	-	20048.029.019.10	20048.029.019.30
25/20	29	1.5	23	1.5	50	16	-	20048.029.023.10	20048.029.023.30
25	29	1.5	29	1.5	50	-	50	20046.000.029.10	20046.000.029.30
32/15	35	1.5	19	1.5	55	19	-	20048.035.019.10	20048.035.019.30
32/20	35	1.5	23	1.5	55	19	-	20048.035.023.10	20048.035.023.30
32/25	35	1.5	29	1.5	55	19	-	20048.035.029.10	20048.035.029.30
32	35	1.5	35	1.5	55	-	55	20046.000.035.10	20046.000.035.30
40/20	41	1.5	23	1.5	60	22	-	20048.041.023.10	20048.041.023.30
40/25	41	1.5	29	1.5	60	22	-	20048.041.029.10	20048.041.029.30
40/32	41	1.5	35	1.5	60	22.5	-	20048.041.035.10	20048.041.035.30
40	41	1.5	41	1.5	60	-	60	20046.000.041.10	20046.000.041.30
50/25	53	1.5	29	1.5	70	28	-	20048.053.029.10	20048.053.029.30
50/32	53	1.5	35	1.5	70	28.5	-	20048.053.035.10	20048.053.035.30
50/40	53	1.5	41	1.5	70	29	-	20048.053.041.10	20048.053.041.30
50	53	1.5	53	1.5	70	-	70	20046.000.053.10	20046.000.053.30
65/32	70	2.0	35	1.5	80	37	-	20048.065.035.10	20048.065.035.30
65/40	70	2.0	41	1.5	80	37.5	-	20048.065.041.10	20048.065.041.30
65/50	70	2.0	53	1.5	80	38.5	-	20048.065.053.10	20048.065.053.30
65	70	2.0	70	2.0	80	-	80	20046.000.065.10	20046.000.065.30
80/40	85	2.0	41	1.5	90	45	-	20048.080.041.10	20048.080.041.30
80/50	85	2.0	53	1.5	90	46	-	20048.080.053.10	20048.080.053.30
80/65	85	2.0	70	2.0	90	47.5	-	20048.080.065.10	20048.080.065.30
80	85	2.0	85	2.0	90	-	90	20046.000.080.10	20046.000.080.30
100/50	104	2.0	53	1.5	100	55.5	-	20048.100.053.10	20048.100.053.30
100/65	104	2.0	70	2.0	100	57	-	20048.100.065.10	20048.100.065.30
100/80	104	2.0	85	2.0	100	57	-	20048.100.080.10	20048.100.080.30
100	104	2.0	104	2.0	100	-	100	20046.000.100.10	20046.000.100.30
125/65	129	2.0	70	2.0	187.5	69.5	-	20048.125.065.10	20048.125.065.30
125/80	129	2.0	85	2.0	187.5	69.5	-	20048.125.080.10	20048.125.080.30
125/100	129	2.0	104	2.0	187.5	70.5	-	20048.125.100.10	20048.125.100.30
125	129	2.0	129	2.0	187.5	-	187.5	20046.000.125.10	20046.000.125.30
150/80	154	2.0	85	2.0	225	82	-	20048.150.080.10	20048.150.080.30
150/100	154	2.0	104	2.0	225	83	-	20048.150.100.10	20048.150.100.30
150/125	154	2.0	129	2.0	225	86.5	-	20048.150.125.10	20048.150.125.30
150	154	2.0	154	2.0	225	-	225	20046.000.150.10	20046.000.150.30

Form TSK, RTS, NW 200 sowie Sondersprünge auf Anfrage.

T-Stücke SMS

NW		Rohrmasse				L0	L1	L2	Art.-Nr. 1.4404
SMS	Zoll	D1	S1	D2	S2
25	1"	25	1.2	25	1.2	55	-	55	20106.000.100.30
38/25	1 1/2"/1"	38	1.2	25	1.2	70	21	-	20105.112.100.30
38	1 1/2"	38	1.2	38	1.2	70	-	70	20106.000.112.30
51/25	2"/1"	51	1.2	25	1.2	82	29	-	20105.200.100.30
51/38	2"/1 1/2"	51	1.2	38	1.2	82	29	-	20105.200.112.30
51	2"	51	1.2	51	1.2	82	-	82	20106.000.200.30
65.5/38	2 1/2"/1 1/2"	63.5	1.6	38	1.2	105	36	-	20105.212.112.30
63.5/51	2 1/2"/2"	63.5	1.6	51	1.2	105	36	-	20105.212.200.30
63.5	2 1/2"	63.5	1.6	63.5	1.6	105	-	105	20106.000.212.30
76/38	3"/1 1/2"	76.1	1.6	38	1.2	110	44	-	20105.300.112.30
76/51	3"/2"	76.1	1.6	51	1.2	110	44	-	20105.300.200.30
76/63.5	3"/2 1/2"	76.1	1.6	63.5	1.6	110	44	-	20105.300.212.30
76	3"	76.1	1.6	76.1	1.6	110	-	110	20106.000.300.30
101.6	4"	101.6	2.0	101.6	2.0	150	-	150	20106.000.400.30

Andere NW - Sprünge auf Anfrage.
